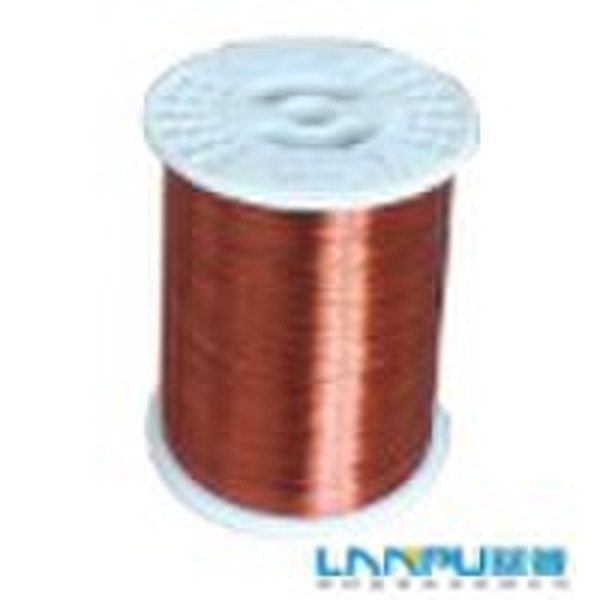

Super Enameled Copper Flat/Round Wire
original price: 8,50 USD
Mark Zhang
Contact person
Basic Information
| Place of Origin | Henan China (Mainland) |
|---|---|
| Brand Name | LP-QTX |
| Model Number | LP |
| Type | Insulated |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Insulation Material | Other |
1.Zhengzhou LP Industry Co.,Ltd Website:http://www.windingwire.net China Super Enameled Copper Wire 2.Detailed Product Description Diameter range:0.025mm - 2.0mm SWG14-50 ,AWG12-50Flat type scope:Thickness(a): 1mm-10mm, Width(b): 3mm-16mmThermal class:B(130), F(155), H(180), C(200), C+(220)Thickness of Enamel:Grade1, Grade2, Grade 3Suitable insulation:UEW/PEW/SEIW/EIW/EAIW/AIW/NEWApplications:Relays, Micro-motors, Mini-transformers, Ignition coils, Water valves, Magnetic heads, Coils for telecommunication equipmentStandard:IEC, NEMA, JIS,GBPacking:Plastic spool or as your requirementPrice term:FOB/CIF/CNF/DDU/DDPPayment term:T/TMinimum Order:500kgDelivery time:7days-30days
Delivery terms and packaging
Packaging Detail: Plastic Spool or Wooden Spool and wooden box package Delivery Detail: 6-30days
Port: China Main Port
